CSP Heat Collection, Thermal Storage, Power & Hydrogen

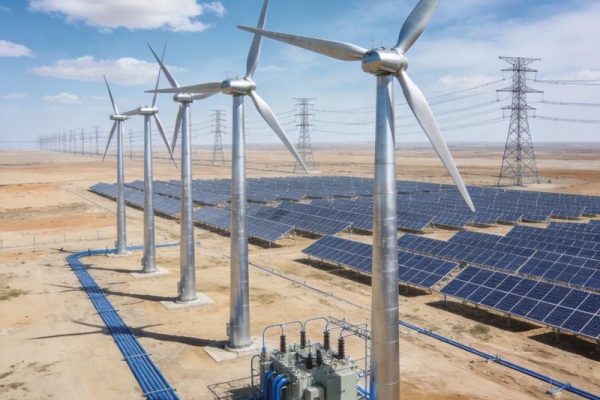

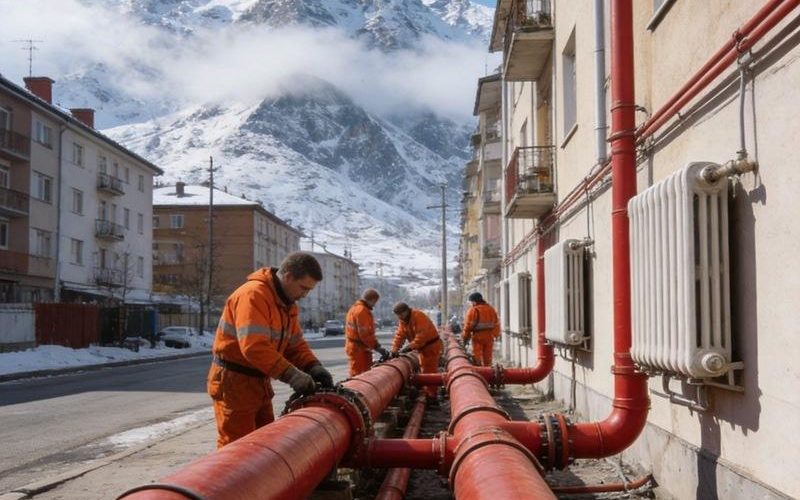

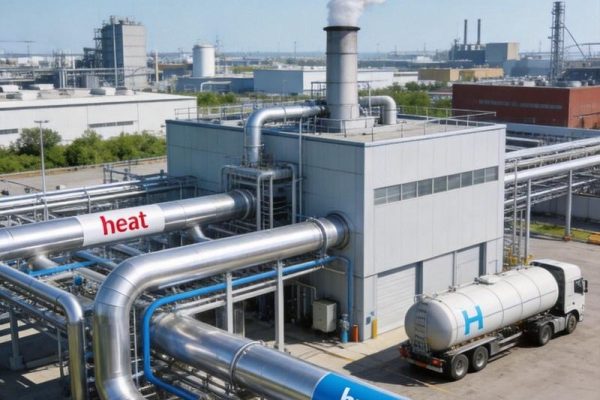

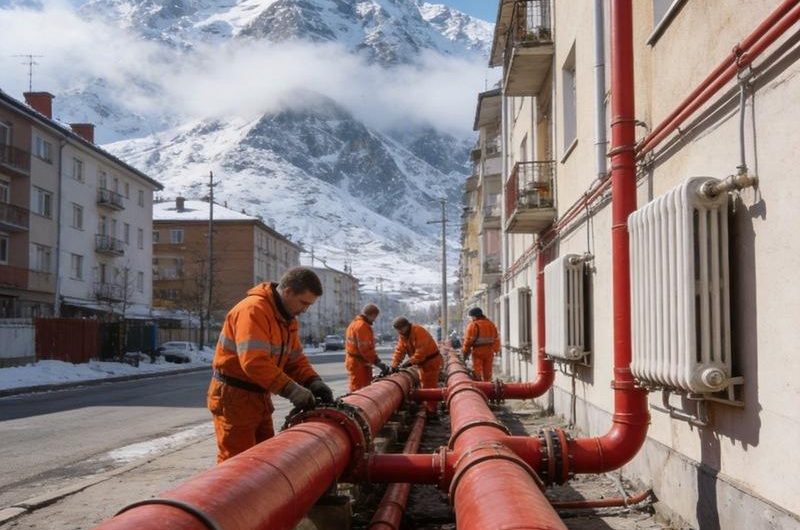

The CSP-Storage-Hydrogen system uses concentrated solar power as a clean heat source. Parabolic trough or Fresnel collectors capture solar thermal energy to heat thermal oil or molten salt for thermal storage, enabling 24/7 continuous and stable heat and steam output. The system can directly supply heat (40–50% efficiency) or drive turbine generators for power generation (22–25% efficiency), while also producing stable green hydrogen through electrolysis. This achieves multi-energy coupling of solar, heat, power, and hydrogen. Compared to traditional CSP plants, adding hydrogen production further improves economic viability and operational flexibility. The system is ideally suited for high-altitude cold regions, remote areas, large-scale national energy projects, and industrial heat applications.

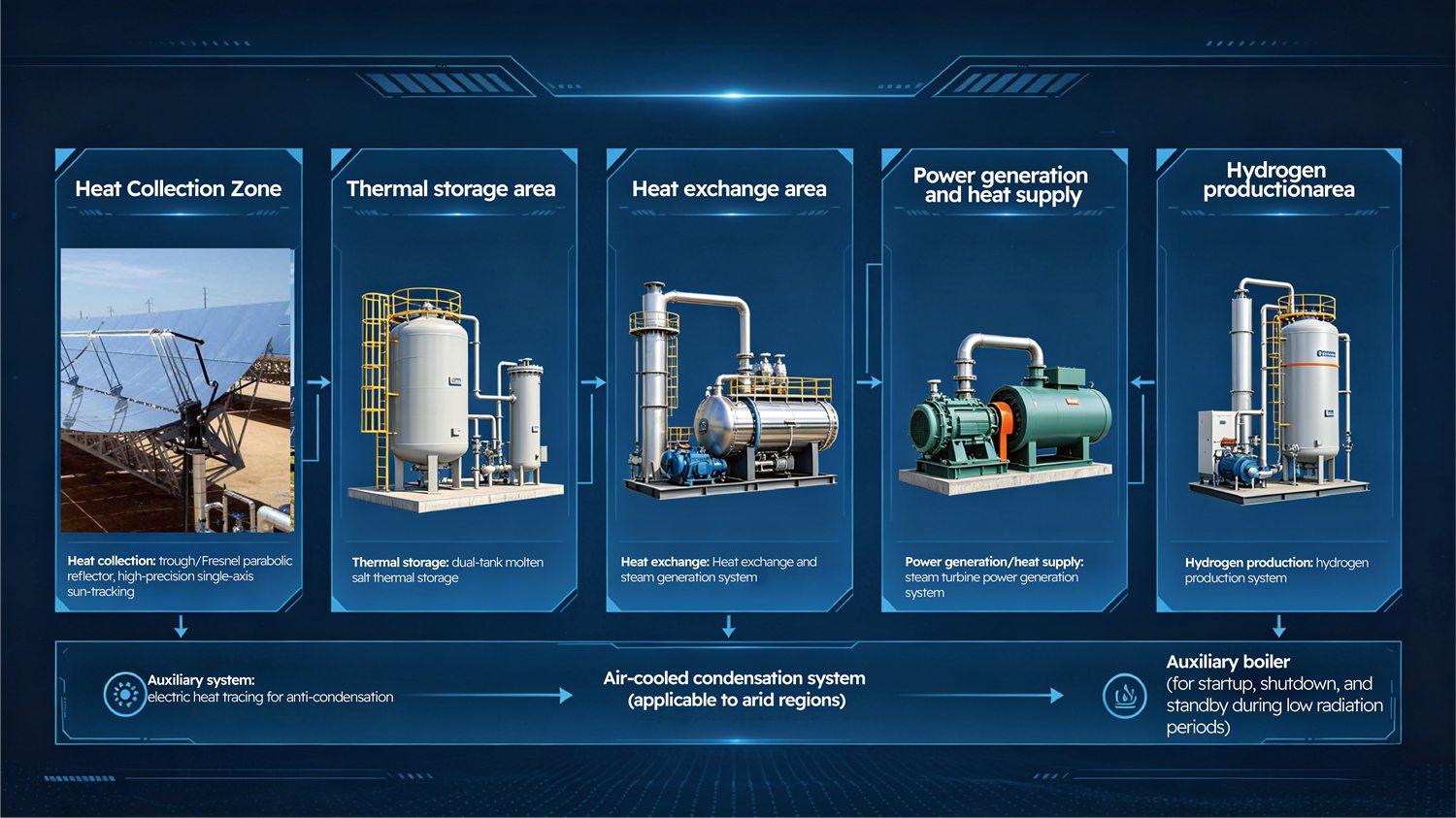

1.CSP Collector Field: Trough/Fresnel parabolic mirrors, high-precision single-axis tracking, concentration ratio 70–80x, collection efficiency 60–65%
2.Thermal Storage System: Two-tank molten salt storage (binary nitrate: 60% NaNO₃ + 40% KNO₃), operating range 290°C–565°C, storage duration 8–12 hours
3.Heat Exchange & Steam Generation System: Oil-salt heat exchanger + steam generator, converting high-temperature thermal energy into superheated steam
4.Turbo-Generator System: Reheat condensing turbine unit, main steam parameters 380°C–395°C, 100–120 bar, power generation efficiency 22–25%

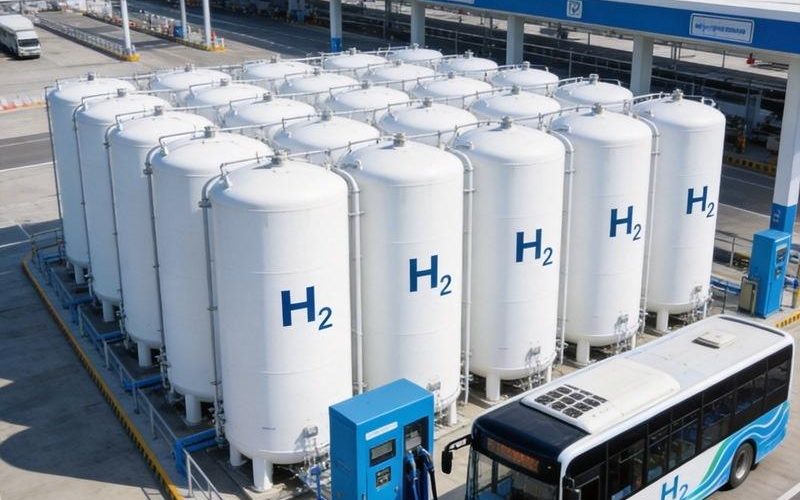

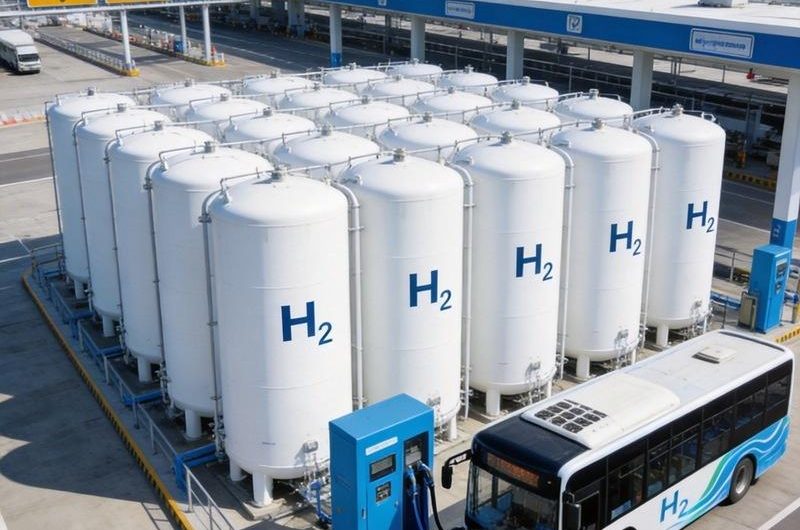

5.Hydrogen Production System: Electrolysis using stable clean power for green hydrogen production
6.Auxiliary Systems: Electric trace heating for freeze protection, air-cooled condenser (for arid regions), auxiliary boiler (for startup and low-irradiation periods)
| Parameter Specification | Description |
|---|---|
| CSP Collection Efficiency | 60%–65% (trough/Fresnel system) |
| Direct Heating Efficiency | 40%–50% |
| Thermal-to-Power Efficiency | 22%–25% (reheat cycle) |
| Thermal Storage Duration | 8–12 hours (customizable) |
| Molten Salt Operating Range | 290°C–565°C |
| Molten Salt Composition | Binary nitrate (60% NaNO₃ + 40% KNO₃) |
| Main Steam Parameters | 380°C–395°C / 100–120 bar |
| Cooling Method | Air-cooled (for arid/water-scarce regions) |
| Receiver Tube Max Temperature | 600°C (TRX aerospace-grade coating technology) |
| Concentration Ratio | 70–80x |
| Tracking Accuracy | ≤0.1° |
Direct heating 40–50%, collection efficiency 60–65%, exceeding conventional CSP
Molten salt storage for 8–12 hours, enabling 24/7 continuous operation
Combined heat, power, and hydrogen supply, maximizing project revenue
